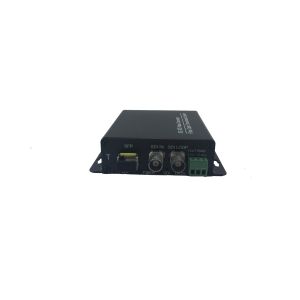

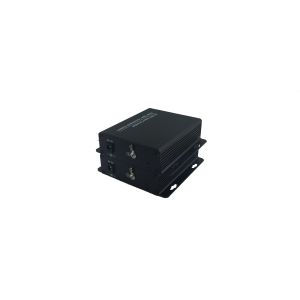

1 Channel 1920X1080P 3G SDI to Fiber Converter extender,with 1Ch Reverse RS485 Data,85mm x 76mm x 30mm

Overview:

Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

Feature:

• SD/HD-SDI video signal supported;
• Complied with SMPTE 259M SD-SDI, SMPTE 292M HD-SDI
• Support 1485Mb/s and 270Mb/s transmission data rate
• Audio, Switching Value, RS232/422/485 Data Oprional
• Support 1080P@30,29.97,25,24,23.98; 1080I@60,59.94,50; 720P@60,59.94, 50,30,29.97,25,24,23.98 and 625i, 525i video format
• Full digital non-compression broadcast level transmission;
• super optic dynamic range and free of adjustment prior to use;
• surface coating technique;
• fiber optic WDM/CWDM/DWDM technique;
• 1000M optical fiber transmission, easy for update;
• industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;

Specification:

Application:

• Police and safe city monitoring system
• Express way security protection and toll station system
• City traffic monitoring system
• Building and campus monitoring system
• Industrial monitoring (airport, chemical plant, railway, etc.)
• Military monitoring (frontier defense, national defense)
• Electronic power oil field, TV station program broadcasting
• Gymnasum (live video and audio transmission)

•
