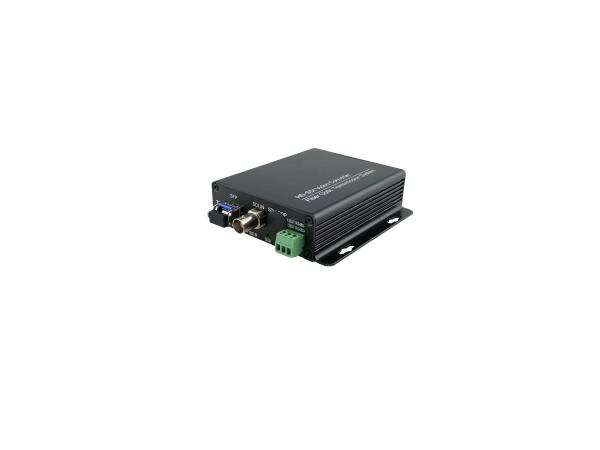

High Quality 1080P HD-SDI Fiber Converter digital Optical Video HD-SDI Fiber Converter Fiber HD-SDI Monitor Audio Video

Overview

HD-SDI Series SDI Video Digital Optical Converter is used in the television industry for highly reliable, high-performance serial digital optical transmission equipment, systems support SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, as well as DVB-ASI (EN50083-9), such as digital TV format standards to meet industry level product requirements.

Features

• Transmission 1 channel ASI / TS streaming digital television signals over a single fiber.
• Supports SMPTE 259M and SMPTE 344M.
• Supports data rates in the range of 143, 177, 270, 360, 540 Mbps and 270 Mbps DVB-ASI.
• Automatic input equalization coaxial maximum 350m @ 270Mbps
• The power and other parameters can monitor the system status indication LED Hot-swappable
• Support 4U chassis, 1U chassis and independent structure et signal (shared 100M bandwidth, support port VLAN)


Application

• Animal films recording;

• Live events broadcast over fiber
• High performance(error-free) surveilance networks in Army or security;
• Large video wall system
• Intelligent Traffic Monitoring System
• Security systems
• School networking
• Industrial monitoring (Electricity,Chemistry,Steel,Oil,Railway & etc)
• Military Monitoring (Warehouse,Border,Guards,etc)
• Stadium (For LIVE HD video,audio transmission)

Technical Indexes

Television signal standard Wavelength	SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M, M2S & DVB-ASI
Number of Inputs	1
Number of Outputs	1 or 2 (Can be optional)
Reflection loss	> 15DB
Balanced	0-300m @ 270Mb / s
Connector	75Ω BNC
Distance	0~500M (MM) / 0~120KM (SM)

Optical properties

Fiber Quantity	1CH
Cable transmission type	single-mode fiber (multimode optional)
Output power	-5 ~-10dBm (0 ~-5dBm for 80km)
Receiver sensitivity	-26dBm (-30dBm for 60km)
Wavelength	> 14dB
Jitter	<0.2UI
Connector	FC / PC (SC / PC optional)

Serial TV BNC output (EO / OE):

Output Quantity	1 channel transmitter loop out (optional) Receiving end 2-way
Signal Level	800mV nominal
Rise / Fall Time	900ps nominal
Reflection loss	15dB
Jitter	75Ω BNC
Wavelength	1310nm (1550nm optional ultra-long haul)

Electrical Specifications

Input Power	12 VDC @1A
Power consumption (maximum)	Transmitter: 1.8W Receiver: 1.5W
Operating temperature	-10°C ~55°C
Storage temperature	-10°C to 70°C
Operating humidity	0 ~ 95% (non-condensing)
Net Weight	1000g per pair
Case material	Aluminum

Shipping and packing:
